Seven Questions to Ask Before Ordering a Custom High Vacuum Heater

Prepare a better heater RFQ by defining temperature, atmosphere, geometry, uniformity, power, heating zones, mounting, and sensor requirements.

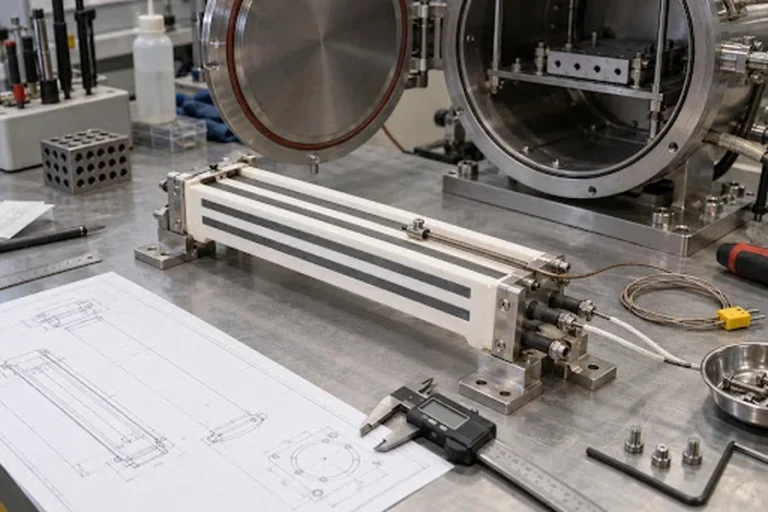

A request for “a custom heater that reaches 1000°C” is not enough information to design a reliable component. Two heaters with the same target temperature may require very different materials, resistance patterns, electrical connections, and support structures if one heats a small microscopy sample and the other heats a semiconductor wafer in high vacuum.

A complete request for quotation helps the supplier determine feasibility, estimate electrical requirements, identify environmental risks, and reduce the number of prototype iterations. Before ordering a custom high-vacuum heater, answer the following seven questions.

1 What Temperature Must the Process Actually Reach

State the normal operating temperature, maximum temperature, duration at temperature, and expected ramp rate. Separate continuous operation from short-duration excursions. Also identify what must reach that temperature: the heater surface, a wafer, a sample, a crucible, or a gas stream.

The heater temperature may be substantially different from the workpiece temperature because heat must cross a gap, fixture, interface, or radiative path. Include the substrate material, dimensions, mass, and starting temperature so the supplier can make a more realistic power estimate.

2 What Atmosphere Will Surround the Heater

Specify the vacuum range or operating pressure and list every gas used during processing, cleaning, purging, and standby. “Vacuum” alone does not describe a chamber that is later exposed to oxygen, hydrogen, ammonia, fluorine chemistry, or reactive plasma.

Atmosphere information affects material compatibility, terminal design, insulation choices, and allowable temperature. Include gas concentration when known, whether the heater is directly exposed to plasma, and whether deposited material will accumulate on the heater surface.

3 What Geometry and Active Heating Area Are Required

Provide a dimensioned drawing whenever possible. Define the overall shape, thickness limits, heated area, cold regions, mounting holes, clearances, feedthrough position, and any keep-out zones. If the heater must replace an existing component, include the original part number and measurements, but verify that the used part has not warped or eroded.

The active heating area should be related to the workpiece, not simply to the heater’s outer dimensions. A larger heater is not always better; unused hot area adds power demand and may heat nearby chamber components unnecessarily.

4 How Uniform Must the Workpiece Temperature Be

State an allowable temperature variation and the area over which it applies. For example, “±5°C across the central 150 mm of a wafer at 800°C” is more useful than “good uniformity.” Also describe the measurement method, sensor locations, substrate thickness, spacing, and stabilization time.

Uniformity depends on the entire assembly. Edge losses, mounting contacts, reflectors, shields, substrate rotation, and chamber geometry can all change the result. The heater pattern can compensate for some of these effects, but only when the supplier understands the installed environment.

5 What Electrical Power Is Available

Provide the maximum voltage, current, and total power available at the chamber. State whether the supply is AC or DC and identify any controller limitations. This information allows the heater resistance and conductor pattern to be designed around the actual power system.

Do not select resistance independently from the intended operating point. Electrical resistance can vary with temperature, and the power needed depends on thermal load and heat loss. The supplier may be able to estimate requirements from test data, but the final system should be validated in the user’s equipment.

6 Does the Process Need One Heating Zone or Several

A single-zone heater is simpler to power and control. Multiple zones can improve uniformity or create a deliberate gradient, but they require additional electrodes, feedthroughs, controllers, and calibration. Define whether each zone must operate independently and provide the target temperature or power relationship between zones.

Multi-zone design is especially useful when the chamber has asymmetric heat loss or when the edge of a substrate cools faster than the center. It may also be used to create axial temperature control in a tubular heater. The benefit should be weighed against the added system complexity.

7 How Will the Heater Be Mounted and Measured

Show the support points, clamping method, orientation, mechanical load, and expected vibration. Thin ceramic heaters require support without concentrated stress. The assembly should permit thermal expansion and avoid contact that produces local cooling or damages the insulating layer.

Define the temperature-sensing method as part of the drawing. Thermocouple holes or grooves may be incorporated, but the sensor location must correlate with the controlled workpiece. If an optical pyrometer will be used, include the viewing path, target surface, and expected emissivity assumptions.

Why PBN PG Composite Heaters Fit High Vacuum Applications

PBN/PG heaters combine a pyrolytic graphite resistive layer with pyrolytic boron nitride insulation. Their thin, high-purity construction supports rapid thermal response and low-outgassing operation in demanding vacuum systems. Heater patterns, shapes, zones, and electrode positions can be customized around the equipment design.

For engineers evaluating this architecture, the PBN/PG composite heater specification lists semiconductor substrate heating, electron-microscope sample heating, and metal evaporation among the principal applications. The English product page specifies a maximum working temperature of 1700°C in vacuum.

Information to Include in the RFQ

Plan for Prototype Validation

Even a well-specified custom heater should be validated in representative equipment. Test the heater at the intended pressure, with the real or simulated thermal load, and through the planned temperature cycle. Record power, ramp time, overshoot, temperature uniformity, chamber pressure, and visual condition of electrodes and supports.

Document all accepted prototype changes in the production drawing and acceptance criteria so later orders reproduce the validated configuration.

Conclusion

A useful custom-heater RFQ defines the process rather than only the target temperature. Temperature profile, atmosphere, geometry, uniformity, electrical limits, zones, mounting, and sensing should be considered together. Providing this information early shortens the design cycle and makes quotations easier to compare on a technically equivalent basis.
